Immobilizing cradles
Using immobilizing cradles during patient treatment provides the most effective means of position stability and comfort for both patient and medical personnel. Cradles establish a rigid base mold that aids in the shaping of the body when using liquid molding agents. Using our cradles with our liquid foaming chemicals provides the strongest, most reliable option for patient immobilization.
Can be ordered:
-Cradle only
-Cradle kit (Includes a set of size corresponding chemical per cradle)
Our cradles are machined and assembled in-house, and kept in stock for fast shipping.
If you don't see an in stock cradle that fits your needs, we can custom make a cradle that does.
K-10 Cradle
(Boxes of 5)
Head & Shoulder cradle
Head, shoulder, thoracic cut out pattern.
Provides angular cut outs for upper & lower arm placement above head.
Measures:
24in width X 23 1/2in long
4 3/4in height at highest point.
Order as: Cradle ONLY or Cradle KIT
Cradle kit includes one set of REGULAR size chemical.
K-10H Cradle
(Boxes of 6)
Head & Shoulder cradle
Head, shoulder, thoracic cut out pattern.
Provides angular cut outs for upper arm placement above head, and full cut outs from shoulder through thoracic.
Measures:
21 1/2in width X 24in long
4 3/4in height at highest point.
Order as: Cradle ONLY, or Cradle KIT.
Cradle kit includes one set of REGULAR size chemical.
K-10M Cradle
(Boxes of 5)
Head & Shoulder Cradle.
Head and full thoracic cut out pattern from shoulder.
Provides angular cut outs for upper & lower arm placement above head.
Measures:
21 1/2in width X 24in long
4 3/4in height at highest point.
Order as: Cradle ONLY or Cradle KIT.
Cradle kit includes one set of REGULAR size chemical.
K-10MAC Cradle
(Boxes of 5)
Head & Shoulder cradle.
Head & shoulder cut out pattern. Thoracic region eliminated.
Provides angular cut outs for upper & lower arm placement above head.
Measures:
24in width X 23 1/2in long base.
24in width X 15 1/2in long cradle
portion.
4 3/4in height at highest point.
Order as: Cradle ONLY or Cradle KIT.
Cradle kit includes one set of REGULAR size chemical.
K-10B Cradle
(Boxes of 6)
Lung cradle
Full head, shoulder/thoracic cut out pattern.
Provides section cut away from side of head, through thoracic.
Measures:
21 1/2in width X 24in long.
Side of head & thoracic cut away:
1 1/2in height.
4 3/4in height at highest point.
Order as: Cradle ONLY or Cradle KIT.
Cradle kit includes one set of REGULAR size chemical.
K-19 Cradle
(Boxes of 4)
CNS cradle.
Full head, shoulder, thoracic cut out pattern.
No arm cut outs.
Measures:
20in width X 29in long.
4 3/4in height at highest point.
Order as: Cradle ONLY or Cradle KIT.
Cradle kit includes one set of LARGE size chemical.
K-19U Cradle
(Boxes of 4)
Pelvic cradle.
Full cut out, sides with open ends.
Measures:
20in width X 29in long.
Inner width between sides: 16 1/2in.
Order as: Cradle ONLY or Cradle KIT.
Cradle kit includes one set of LARGE size chemical.
K-15 Cradle
(Boxes of 5)
Breast cradle.
Includes 3 cut out pattern pieces for head, breast, arm positioning, and base board.
Comes disassembled. Assemble to treatment/patient needs using provided double sided adhesive.
Measures: 20in width X 29in long board. 4in thick pieces.
Order as: Cradle ONLY or Cradle KIT.
Cradle kit includes one set of LARGE size chemical.
K-16 Cradle
2 leg pelvic cradle.
Full angled pelvic cut out pattern with open ends. Includes separator piece.
Custom Cradles
Need something that you don't see in stock?
Provide us the design information you need, and we can manufacture a custom cradle that works for you.

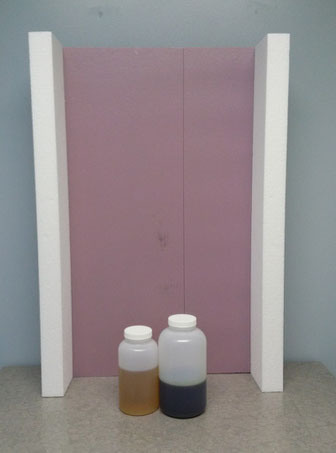

Base boards and Parts
Use for free forming, backer board, support board, etc.
K-15 base board ONLY full order
(Box of 29 boards)
Measures: 20in X 29in. 3/4in thick.
Custom sizing available.
Does not come as a kit.
Chemicals to be used with boards order separate.
